Isokinetic Isometric & Isotonic Training Equipment for 6 Joints

Basic Info

Model NO.	A8-3
Name	Isokinetic Training Equipment
Application	Fitness Center, Hospital, Rehab Centers
Service	ODM OEM Service
Training Joints	Shoulder, Elbow, Wrist, Hip, Knee, Ankle
Training Modes	22
Peak Torque	700 Nm
Minimum Speed	0.02° /S
Operating Temp	5 ~ 40 ºC
Transport Package	Wooden Case
Specification	200*80*180 cm
Trademark	yikang
Origin	China

Product Description

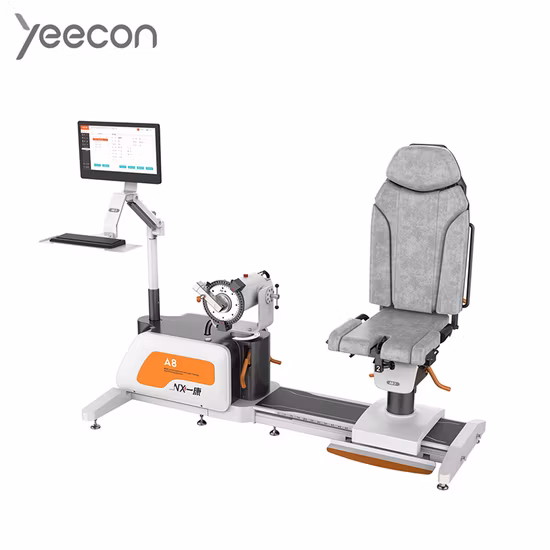

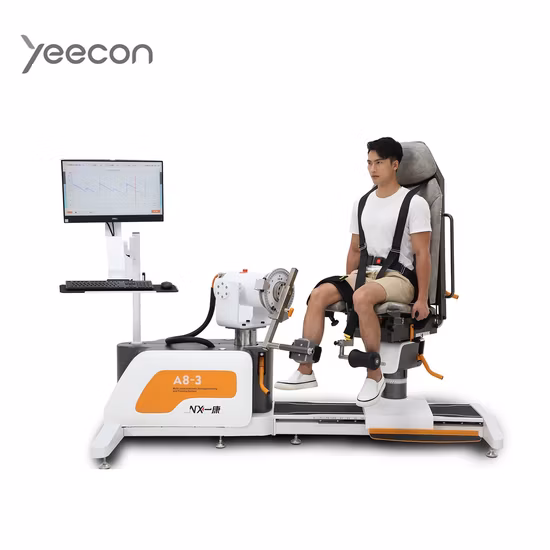

Isokinetic Training Equipment A8

Product Introduction

Isokinetic strength testing and training equipment A8 is an assessment and training machine for six major joints of human. Shoulder, elbow, wrist, hip, knee and ankle can get isokinetic, isotonic, isometric, centrifugal, centripetal and continuous passive testing and training.

The training equipment can do assessment, and reports are generated before, during and after testing and training. What's more, it supports printing and storage functions. The report can be used to assess human functional ability and as a scientific research tool for researchers. Various modes can fit all periods of rehabilitation and the rehabilitation of joints and muscles can achieve the highest level.

Product specification:

Product Name	Isokinetic Strength Testing and Training System
Model	A8
Brand	Yikang
Application	Fitness Centers, Gyms, Hospitals, Rehabilitation Centers
Voltage	A.C. 230V/50Hz
Power	1.2k V/A
Operation System	Windows 10
Joints	Shoulder, Elbow, Hip, Wrist, Knee, Ankle
Dimension	200*80*180 cm
Movement Modes	22

How Does the Isokinetic Training Equipment Work?

Isokinetic muscle strength measurement is to evaluate the functional state of muscle by measuring a series of parameters reflecting muscle load during isokinetic movement of limbs. The measurement is objective, accurate, simple and reliable. The human body itself cannot produce isokinetic motion, so it is necessary to fix the limbs on the lever of the instrument. When it moves independently, the speed limiting device of the instrument will adjust the resistance of the lever to the limb at any time according to the strength of the limb, in that way, movement of the limb will maintain the speed at a constant value. Therefore, the greater the strength of the limbs, the greater the resistance of the lever, the stronger the load on the muscles. At this time, measurement on a series of parameters reflecting muscle load can truly reveal the functional state of muscle.

The equipment has a computer, a mechanical speed limiting device, a printer, a seat and some other accessories. It can test various parameters such as torque, optimal force angle, muscle work volume and so on. And besides, it truly reflects muscle strength, muscle explosiveness, endurance, joint mobility, flexibility, stability and many other aspects. This equipment provides accurate and reliable testing, and it also provides various motion modes such as constant velocity centripetal, centrifugal, passive, etc. It is an efficient motor function assessment and training equipment.

Therapeutic Effect:The isokinetic training equipment is suitable for neurology, neurosurgery, orthopedics, sports medicine, rehabilitation and some other departments. It is applicable to muscle atrophy caused by exercise reduction or other causes. What's more, it can do with muscle atrophy caused by muscle lesions, muscle dysfunction caused by neuropathy, muscle weakness caused by joint disease or injury, muscle dysfunction, healthy person or athlete muscle strength training.

Features

1, Precise rehabilitation evaluation system with multiple resistance modes. It can assess and train shoulder, elbow, wrist, hip, knee and ankle joints with 22 movement modes;

2, It can assess a variety of parameters, such as peak torque, peak torque weight ratio, work, etc.;

3, Record, analyze and compare test results, set specific rehabilitation training programs and goals and record improvement;

4, Test and training can be viewed during and after testing and training. The generated data and graphs can be printed as reports to assess human functional capabilities and as a reference to researchers and therapists;

5, Enables a variety of modes that are suitable for all stages of rehabilitation, achieve the highest level of joint and muscle rehabilitation;

6, The training has strong pertinence and can test or train specific muscle groups.

22 Movement Modes of A8

Yeecon has been a keen manufacturer of rehabilitation equipment since 2000. We develop and manufacture various kinds of rehab equipment such as physiotherapy equipment and rehabilitation robotics. We have a comprehensive and scientific product portfolio that covers the whole cycle of rehabilitation. We also provide holistic rehabilitation center construction solutions. If you are interested in cooperating with us. Please feel free to leave us a message or send us email.

We look forward to cooperating with you.

Company Profile

Guangzhou Yeecon Medical Equipment Industrial was founded in 2000 and is a senior rehabilitation medical equipment company integrating independent research, development, production and operation. Our intelligent rehabilitation robotics series has always been in the leading position in the industry. We are not only the first manufacturer to propose the concept of intelligent rehabilitation robotics, but also the pioneer in the independent research and development of the first rehabilitation robotics in China. Welcome to contact for cooperation and our rehabilitation equipment.

Besides rehabilitation robotics, we also supply other series of products including physical therapy, occupational therapy, and treatment tables, etc. Find what attracts you, and feel free to inquire.
